Custom Function Parameters: Value or Reference?

By November 4, 2013 September 5th, 2019 8 Comments

I have always assumed that parameters for custom functions are passed strictly “by value”: if you point to a field, then that field’s value is what the custom function receives. Look at the example below.  The custom function is very simple and just returns the value of the parameter.  I am calling the custom function and pointing it to a field for the parameter.  Works exactly like you’d expect it to, doesn’t it?  The custom function just returns the parameter that we passed in.

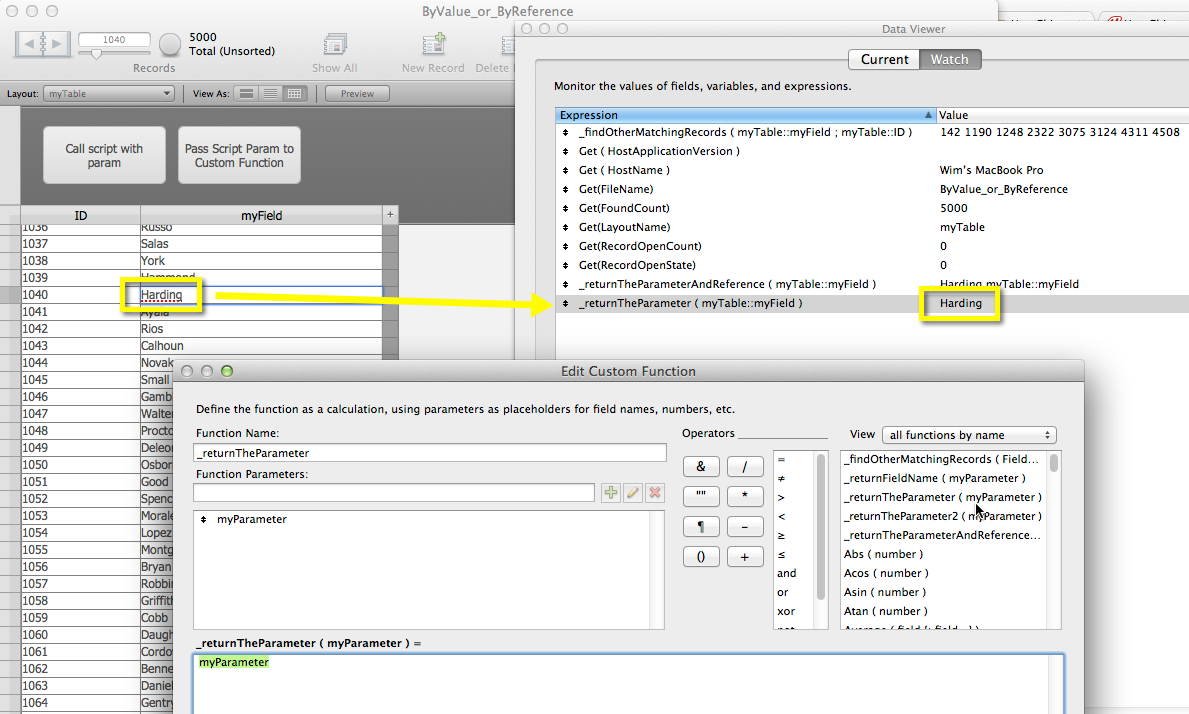

Custom Function Parameters

Now let’s change the custom function to return two lines:

  • the value of the parameter and
  • a getfieldname( ) function call on the parameter

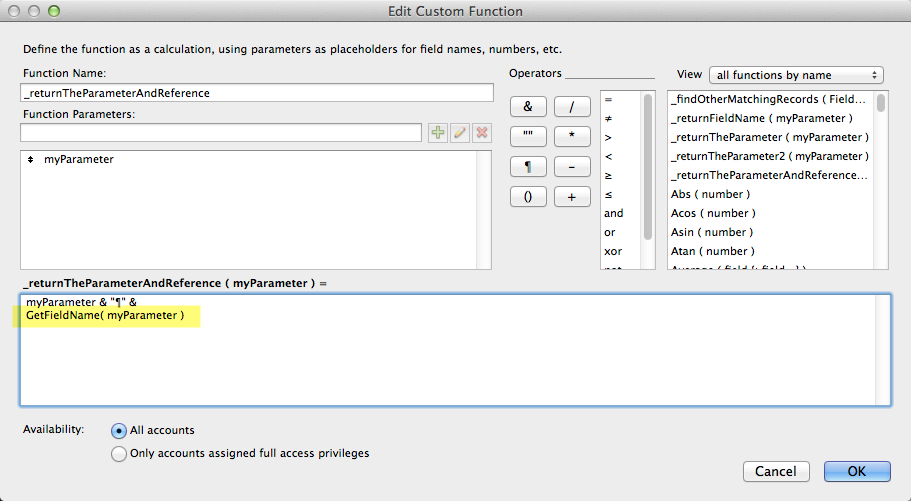

CustomFunctionParams2

When looking at the result in the Data Viewer we see that the result is both the value and the field name.

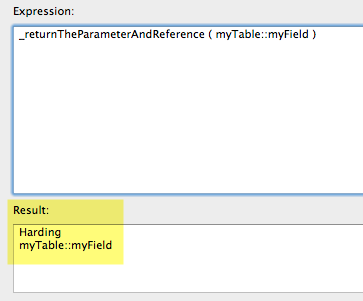

CustomFunctionParams3

That seems to indicate that the parameter is not really the value of the field, but a reference to the field itself.  That means that inside the custom function we have access to a field’s value but also any other information we can ask for by knowing the field’s name (through the Design functions for instance).

Scripts can also receive a parameter.  Does the same thing apply to scripts then?  If I specify a field as the script’s parameter, do I get just the value or also the reference to the field?  Let’s try.  Below is a one-line script that displays a custom dialog with the result of using the getfieldname( ) function on the script’s parameter:

CustomFunctionParams4

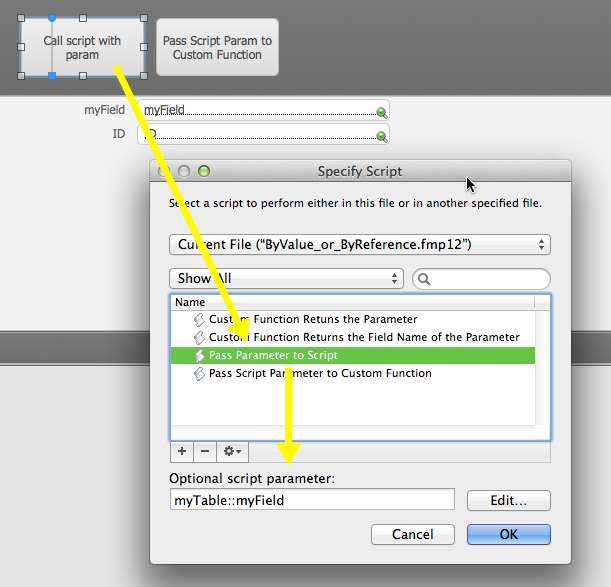

CustomFunctionParams5

When we call that script from a button that passes in a field as the parameter, the message displayed is “?”.

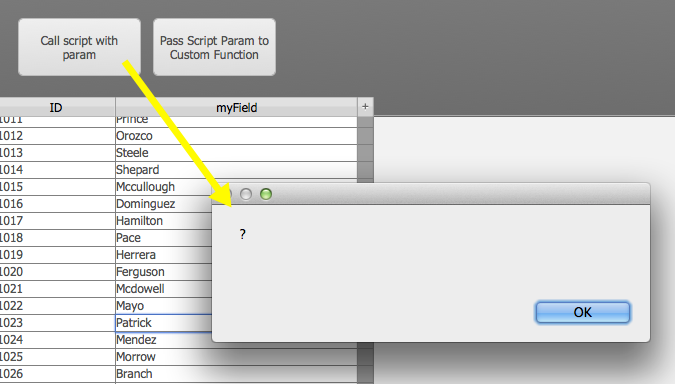

CustomFunctionParams6

It does not work here.  The “?” is what you get when you use the getfieldname( ) function on something that is not a field.  A script just receives the value of the field, not a references to the field.  So script parameters are strictly “by value”, custom function parameters are “by reference” when the parameter points to a field. Food for thought…

In the next blog post I’ll show an example of how we can use that “by reference” behavior of custom functions to our advantage.

Side-note: you can use a field that is “out of context” and pass it to a custom function. The value will not be available but the field reference will.

Wim Decorte

Wim Decorte

Wim is Director, Claris Practice at Soliant. He is a FileMaker 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17 and 18 Certified FileMaker Developer and the author of numerous Tech Briefs and articles on FileMaker Server. Wim is one of the very few multiple FileMaker Excellence Award winners and was most recently awarded the FileMaker Community Leader of the Year award at the 2015 FileMaker Developer Conference. He is also a frequent speaker at the FileMaker Developer Conference and at FileMaker Developer groups throughout the world. In addition to being a renowned expert on FileMaker Server, Wim also specializes in integrating FileMaker with other applications and systems. His pet project is the open source fmDotNet connector class that he created.

8 Comments

  • Avatar Cliff Zhou says:

    Thank you for your sharing, wim. This is very interesting and evelating.

  • Avatar Wim Decorte says:

    Glad you liked it, Cliff.

  • Avatar Daniel Wood says:

    Great tidbit here, thanks for sharing. I never knew this was the case but I can already begin to see some very useful situations to use it for, thanks again! (this now seems make the GetNthRecord function make sure sense, being you pass it what appears to be a field value, yet it treats it as a reference)

  • Avatar Wim Decorte says:

    Thanks, Daniel.  Looking forward to reading about how you will use it 🙂

  • Avatar Daniel Wood says:

    As a potential use, we looked as a team at building some custom functions that work similar to the aggregates, but can be passed a range of records, eg:

    SumRange ( Field ; Start ; End )
    ListRange ( Field ; Start ; End )

    the start and end is a record # to begin and end at – which can be used either via relationship or on a found set. The functions would use recursion and each iteration would make use of GetNthRecord function which is passed “Field” along with a number of the recursion.

    One thing we noted was that GetNthRecord doesn’t like working with other aggregate functions, so in the case of SumRange, we could not use the Sum function within the recusion along with GetNthRecord , instead we had to concatenate the results using + , similarly for List we had to use ┬╢ to get the desired result, weird!

  • Avatar Fred (CH) says:

    Yes, very interesting, thank you Wim ! i went from a recent posted FM Community post. Wanted to add i recently discover a similar shade with Calculation variables (without $). Also they store a reference instead a value.

    Sincerly,
    Fred

  • Avatar Fred (CH) says:

    Thank you Wim.

    I have discovered a similar difference with Let variables (without $). They are storing a reference whereas other variable are storing values.

    Fred
